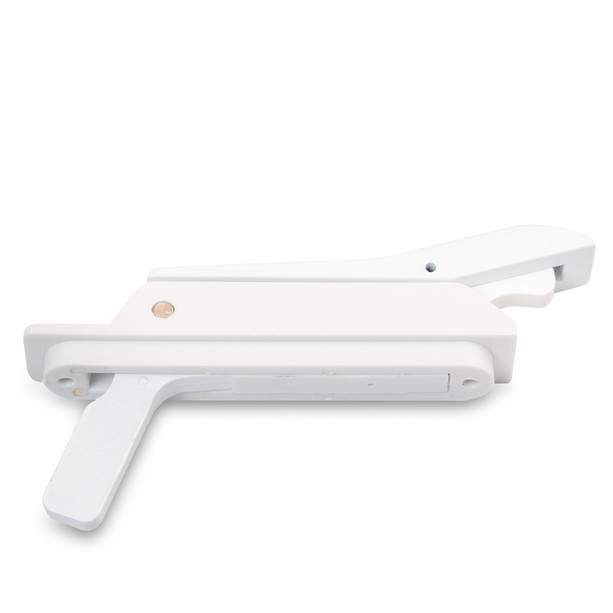

This replacement multi-point casement window locking handle fits many North American vinyl window systems that use an 84 mm (3.31") centre-to-centre screw spacing. The lever is a ZAMAC (zinc alloy) casting set in a nylon housing, and a built-in rubber gasket seals the base against the window frame. Turning the lever operates the window's multi-point locking mechanism, so one handle engages the lock at more than one point along the sash. It installs as a drop-in replacement and works with a wide range of multi-point window locks that share this spacing. Often called a casement lock handle, sash lock, window lock lever, or multipoint lock handle.

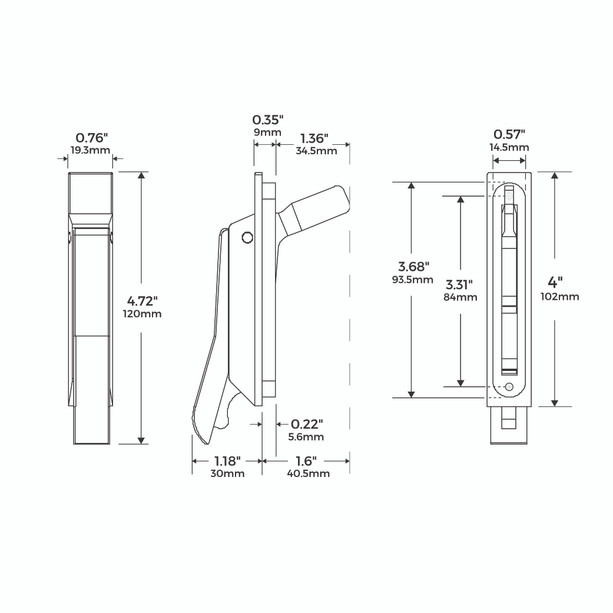

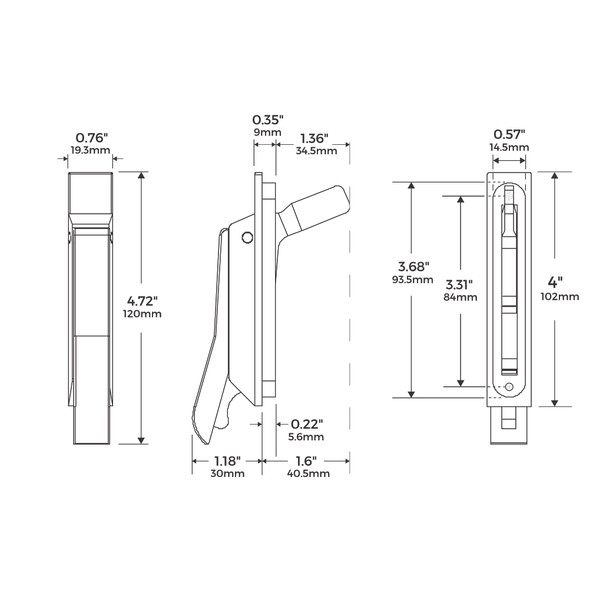

To confirm fit, measure centre-to-centre between the two mounting screws on your existing handle (this one is 84 mm) and compare the lock body, which is 19.3 mm (0.76") wide by 120 mm (4.72") tall.

Specifications

• Type: Multi-point casement window locking handle (replacement)
• Handing: Non-handed
• Screw spacing: 84 mm (3.31") centre-to-centre
• Lock body: 19.3 mm (0.76") wide x 120 mm (4.72") tall
• Lever: ZAMAC (zinc alloy) casting
• Housing: Nylon
• Gasket: Built-in rubber gasket
• Application: Vinyl casement windows with multi-point locks (many North American systems)

Commonly (but not always) stamped "CDN.PAT.2,142,071" on the original handle.
