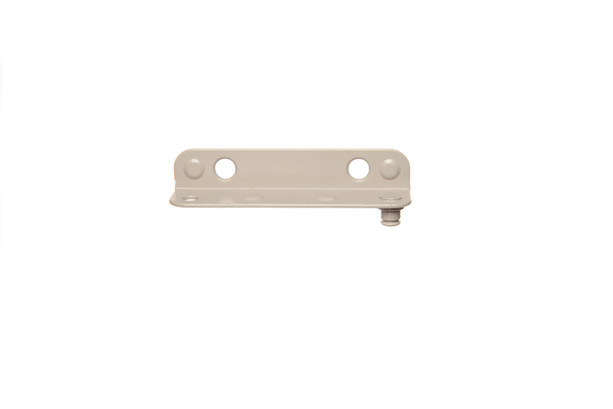

The Truth Hardware (AmesburyTruth) 10340 is the right-hand stud bracket for Truth 15 Series EntryGard dual arm casement operators, finished in E-Gard coating. It screws to the sash, and the operator's link arm clips onto its stud, so the arm can be unclipped when the sash needs to come off for cleaning or service. Truth's E-Gard multi-stage coating has been tested at roughly three times the corrosion resistance of common zinc-plated finishes. Often called a sash bracket, operator bracket, or link arm bracket.

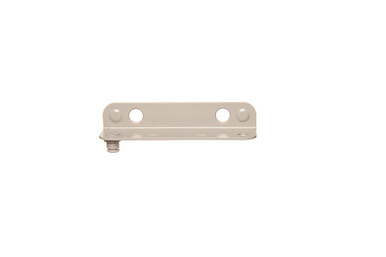

This is the right-hand bracket; part 10339 is the opposite-hand version. It pairs directly with a right-hand 15.10 operator (hinge on the right when the window is viewed from outside). The bottom-clip 15.63 and 15.73 operators swap the hands: Truth's application table calls for the opposite-hand bracket, mounted upside down. So if your window has a 15.63 or 15.73 operator, order the bracket opposite to the window's hand. It is not compatible with the 15.61 or the 15.15 egress operator.

Specifications

• Part number: 10340.93
• Type: Sash-mounted stud bracket for dual arm casement operators
• Handing: Right hand (opposite-hand version: 10339)
• Finish: E-Gard coated
• Overall length: 2.875" (73.0 mm)
• Screw hole spacing: 1.625" (41.3 mm) centre-to-centre
• Depth: 0.688" (17.5 mm)
• F dimension (sets mounting height): 0.385" (9.8 mm)
• Compatible operators: Truth 15.10 right hand; 15.63 and 15.73 of the opposite hand (bracket inverted)
• Not compatible: Truth 15.61 and 15.15 egress operators
• Mounting: Two #7 Phillips flat head screws (sold separately)
