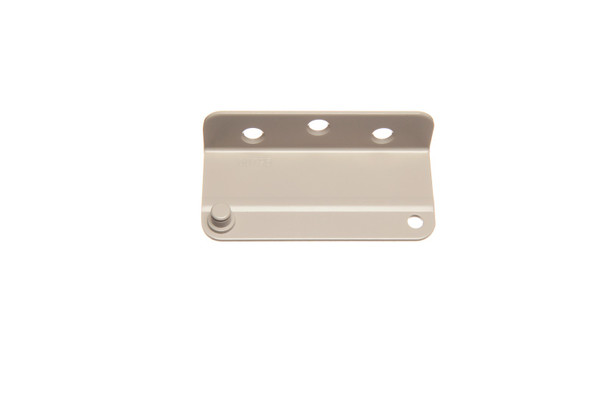

The Truth Hardware (AmesburyTruth) 10522 is a right-hand stud bracket for Truth 15 Series EntryGard casement operators, finished in E-Gard coating. It mounts on the sash, and the operator arm connects to its stud. Truth's E-Gard multi-stage coating has been tested at roughly three times the corrosion resistance of common zinc-plated finishes. Often called a sash bracket, operator bracket, or link arm bracket.

This is the right-hand bracket; part 10521 is the opposite-hand version. Truth makes many stud brackets that look alike, so compare the length, depth and hole spacing below with your old bracket and check the hand before ordering.

Specifications

• Part number: 10522.93
• Type: L-shaped, sash-mounted stud bracket for casement operators
• Handing: Right hand (opposite-hand version: 10521)
• Finish: E-Gard coated
• Overall length: 2.875" (73.0 mm)
• Overall depth: 1.375" (34.9 mm)
• Outer hole spacing: 1.625" (41.3 mm) centre-to-centre
• Compatible operators: Truth 15 Series EntryGard
• Mounting: Two #7 Phillips flat head screws (sold separately)
