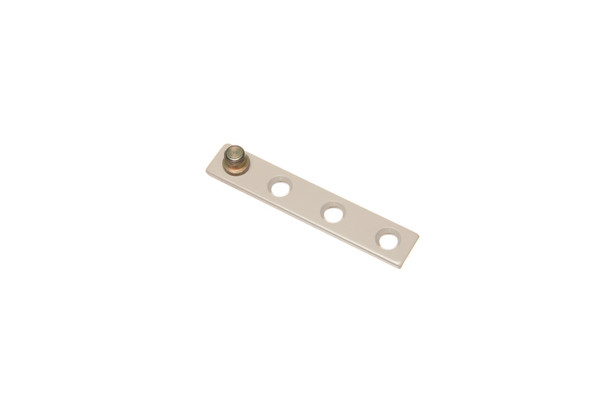

The Truth Hardware (AmesburyTruth) 14696 is a non-handed snap stud bracket for casement window operators, finished in E-Gard coating. It is a flat bar that screws to the sash, and the operator arm snaps onto the stud at one end. Being non-handed, one part fits windows of either hand. Truth's E-Gard multi-stage coating has been tested at roughly three times the corrosion resistance of common zinc-plated finishes. Often called a sash bracket, operator bracket, or link arm bracket.

It has the same dimensions as Truth's 10558 snap stud bracket. Truth recommends the 10558 for its 23 Series Dyad operators, including the 23.46, and lists it for the bottom-clip 15 Series EntryGard Dual Arm 15.63 and 15.73. Truth's EntryGard Dual Arm table does not list it for the 15.10, 15.61 or 15.15 egress operators, so check your old bracket before ordering.

Specifications

• Part number: 14696.93
• Type: Flat, sash-mounted snap stud bracket for casement operators
• Handing: Non-handed
• Finish: E-Gard coated
• Overall length: 2.750" (69.9 mm)
• Width: 0.500" (12.7 mm)
• Stud centre from end: 0.312" (7.9 mm)
• Screw holes: Three, 0.750" (19.1 mm) apart; first hole 0.625" (15.9 mm) from the stud
• F dimension (sets mounting height): 0.164" (4.2 mm)
• Same dimensions as: Truth 10558

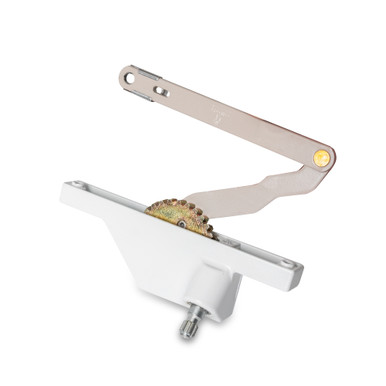

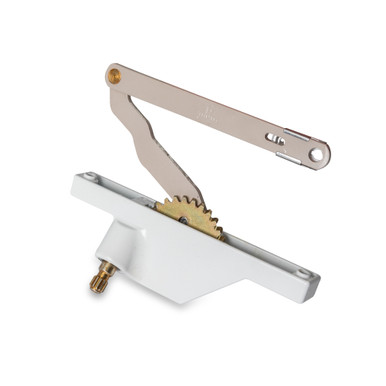

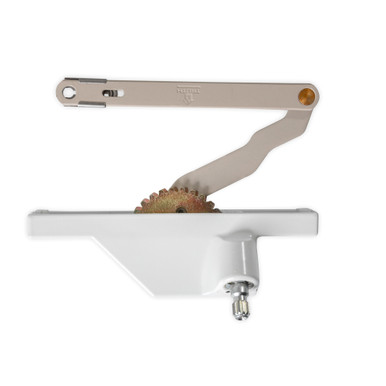

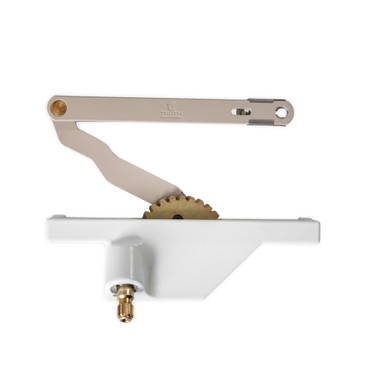

• Compatible operators: Truth 23 Series Dyad (including 23.46); 15 Series EntryGard Dual Arm 15.63 and 15.73
• Not listed for: Truth 15.10, 15.61 and 15.15 egress operators
• Mounting: Three screws (sold separately)

Truth's drawing of this bracket is Fig. 11 (10558) in the 15 Series EntryGard Dual Arm specifications, with the operator table in Fig. 2.
