The Truth Hardware (AmesburyTruth) 30175 is a 13-1/8" stainless steel operator track for Truth 23 Series single arm casement operators. Mounted to the window sash, the track guides the stainless steel roller on the end of the operator arm as the crank swings the sash through its 90° opening. It is made of non-magnetic stainless steel for lasting corrosion resistance, and a notch at one end lets the operator arm be attached or detached — the track installs with the notch toward the hinge side of the window. Often called a sash track, arm track, or operator track bar.

This 13-1/8" track fits the 9-1/2" and 13-1/2" arm operators in the 23 Series. If your operator has a 7-1/2" arm (model 23.38 or 23.71), it uses the shorter 8-1/2" #31002 track instead.

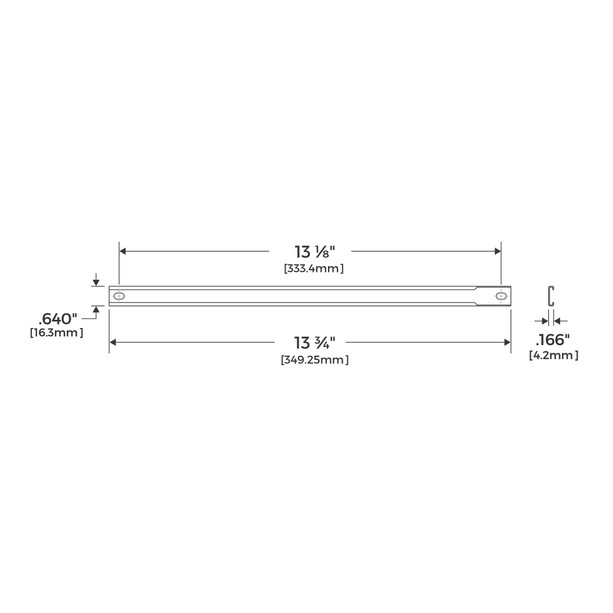

Specifications

• Part number: 30175
• Length: 13-1/8" (333.4 mm)
• Track width: 0.640" (16.3 mm)
• Profile depth: 0.166" (4.2 mm)
• Material: Non-magnetic stainless steel
• Mounting: Face-mounts to the sash with 2 screws (sold separately)
• Compatible operators: Truth 23.01 and 23.03 (front mount); 23.00 and 23.02 (rear mount)
• Window type: Casement
