Truth Lever (10 Series) Awning Operator 13-1/8", Single Pull

Description / Product Specs
Reviews

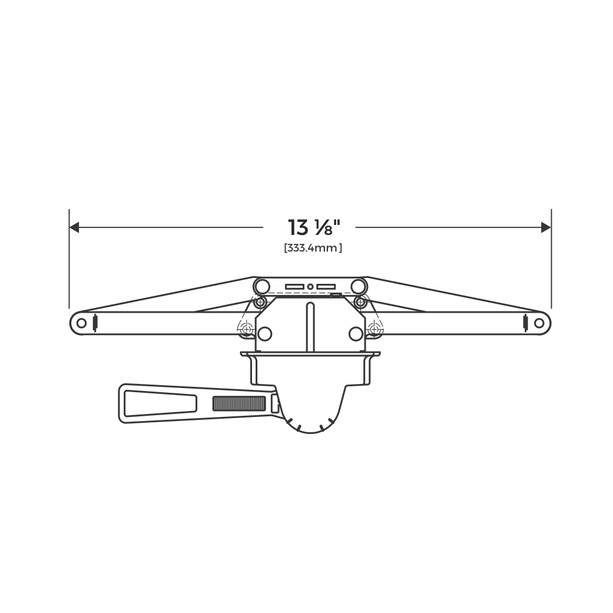

The Truth Hardware (also known as AmesburyTruth) 10 Series Lever-Lock Operator with 13-1/8" (333.375 mm) wide operator arms in the closed position is expertly designed for smooth and efficient operation of awning windows. This operator features a 180° lever handle movement for opening and closing window sashes, the ability to hold the window open in any of the five lockable positions via a thumb-lock screw, and a simple release clip for quick sash detachment.

This line of window operators, often referred to as window cranks or window mechanisms, is engineered with a high-pressure die-cast zinc case and lever handle, a steel base plate and lever arms, and is coated with Truth's multi-stage EGard Plus process for superior corrosion resistance.

The Truth 13-1/8" Lever Operator (10.14.XX.211) is a single pull awning window operator, providing an approximate sash opening of 8-1/2" (215.9 mm) when used with complementary Truth 13 Series awning window hinges.

Technical Specs

Amesbury Truth

Truth Lever (10 Series) Awning Operator 13-1/8", Single Pull

Name: Truth Lever (10 Series) Awning Operator 13-1/8", Single Pull
Brand: Amesbury Truth
SKU: 10.14.32.211
Price: 108 CAD
Availability: InStock
