Truth Lever (10 Series) Awning Operator 23-1/4", Dual Pull

Description / Product Specs
Reviews

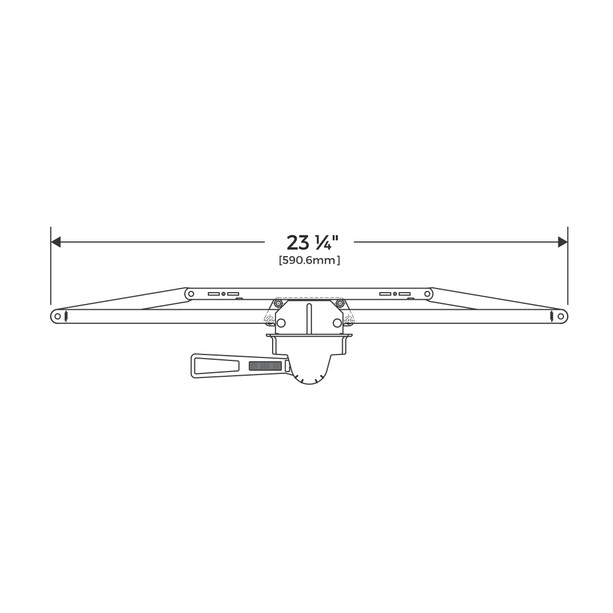

The Truth Hardware (also known as AmesburyTruth) 10 Series Lever-Lock Operator measures 23-1/4" (590.55 mm) wide in the closed position, providing smooth and efficient operation for awning windows. This operator features a 180° lever handle movement for opening and closing window sashes, along with the ability to lock the window in any of the five positions using a thumb-lock screw. For quick sash detachment, two simple release clips are included.

The Truth 10 Series Lever Operator, commonly referred to as a window crank or window mechanism, is engineered with a high-pressure die-cast zinc case and lever handle, a steel base plate and lever arms, and finished with Truth's multi-stage EGard Plus coating process for superior corrosion resistance.

The Truth 23-1/4" Lever Operator (10.11.XX.211) is a dual pull awning window operator, providing an approximate sash opening of 14" (355.6 mm) when used with complimentary Truth 13 Series awning window hinges.

Technical Specs

Amesbury Truth

Truth Lever (10 Series) Awning Operator 23-1/4", Dual Pull

Name: Truth Lever (10 Series) Awning Operator 23-1/4", Dual Pull
Brand: Amesbury Truth
SKU: 10.11.32.211
Price: 80 CAD
Availability: InStock
